CC5516B Series
Contact:
Randy Gautreaux
Product Manager
978-624-3407
[email protected]
Ben Drury
Product Specialist
978-624 3511
[email protected]
Contact Us to Learn More
Description:

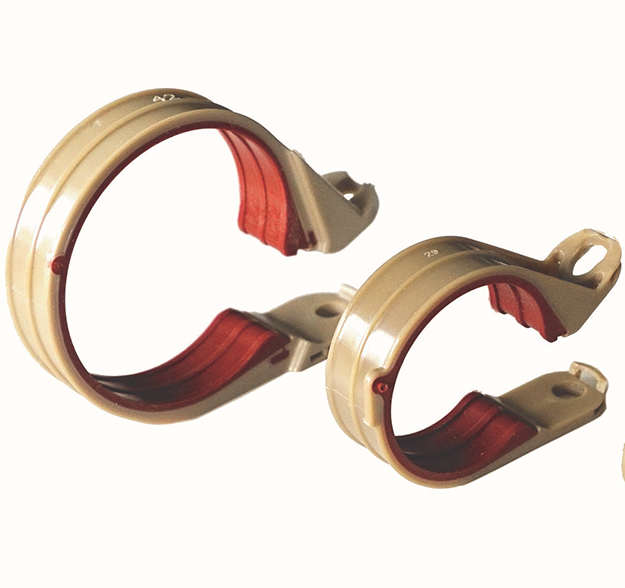

CC5516 Light series is a line of lightweight cable clamps, in composite and silicone, derived from the legacy NSA5516 metallic clamps. They offer time saving in installation, as well as safety over time and significant additional weight saving compared to metallic equivalents.
Features & Benefits:
-
Available in 10 sizes for cable or pipes diameters from 5 to 25.4 mm
-
Weight from 1.4g to 4.9g
-
Weight saving up to 24% compared to legacy CC5516A composite clamps, and up to 73% compared to metallic NSA5516 clamps
-
Pre-locking mechanism
-
Designed for stacking
-
Closed and fixed on surface by screws
-
Electrical bundle or pipes protected from vibration by overmolded elastomer
-
Operating temperature up to 435°F permanent
