Solaris Series

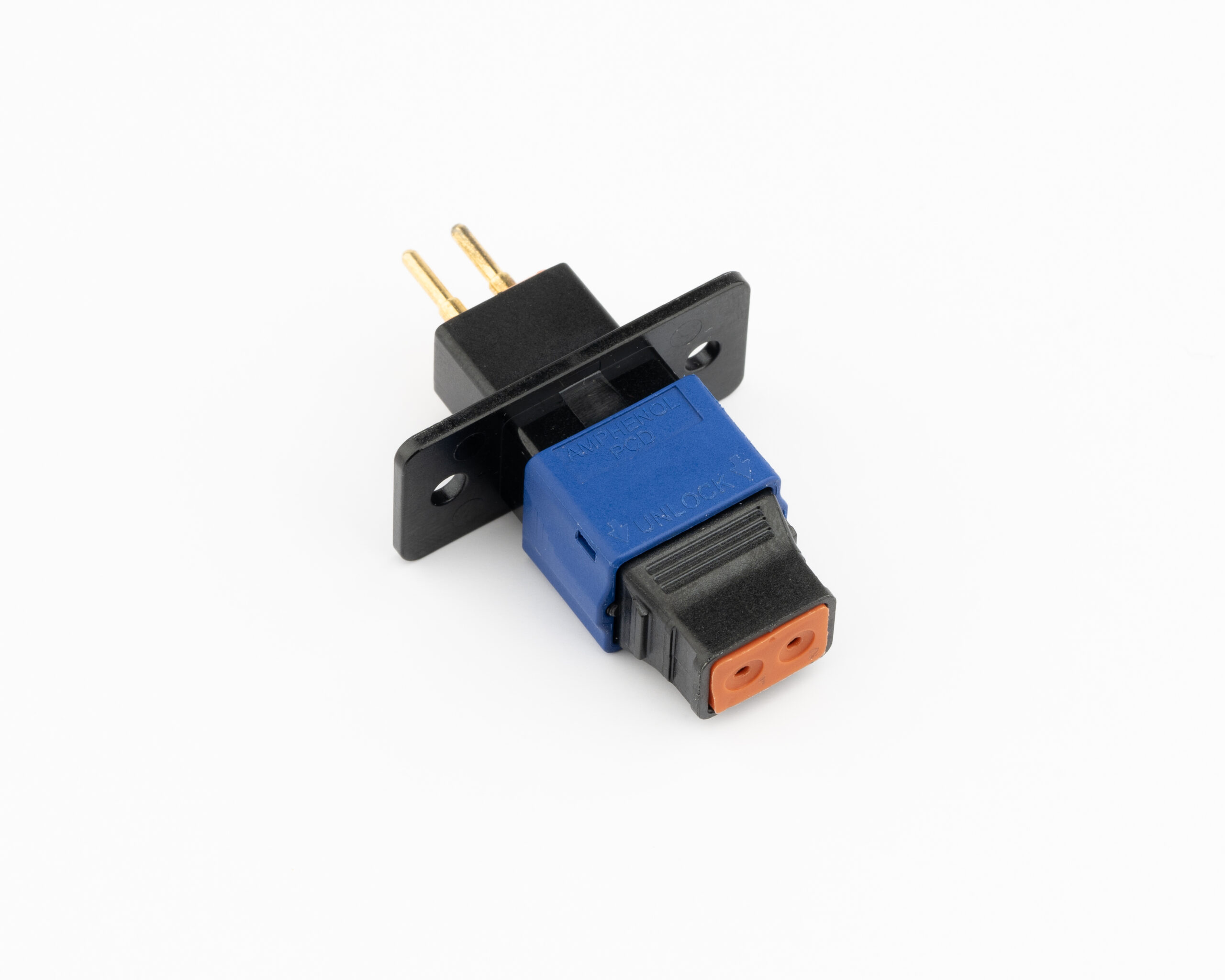

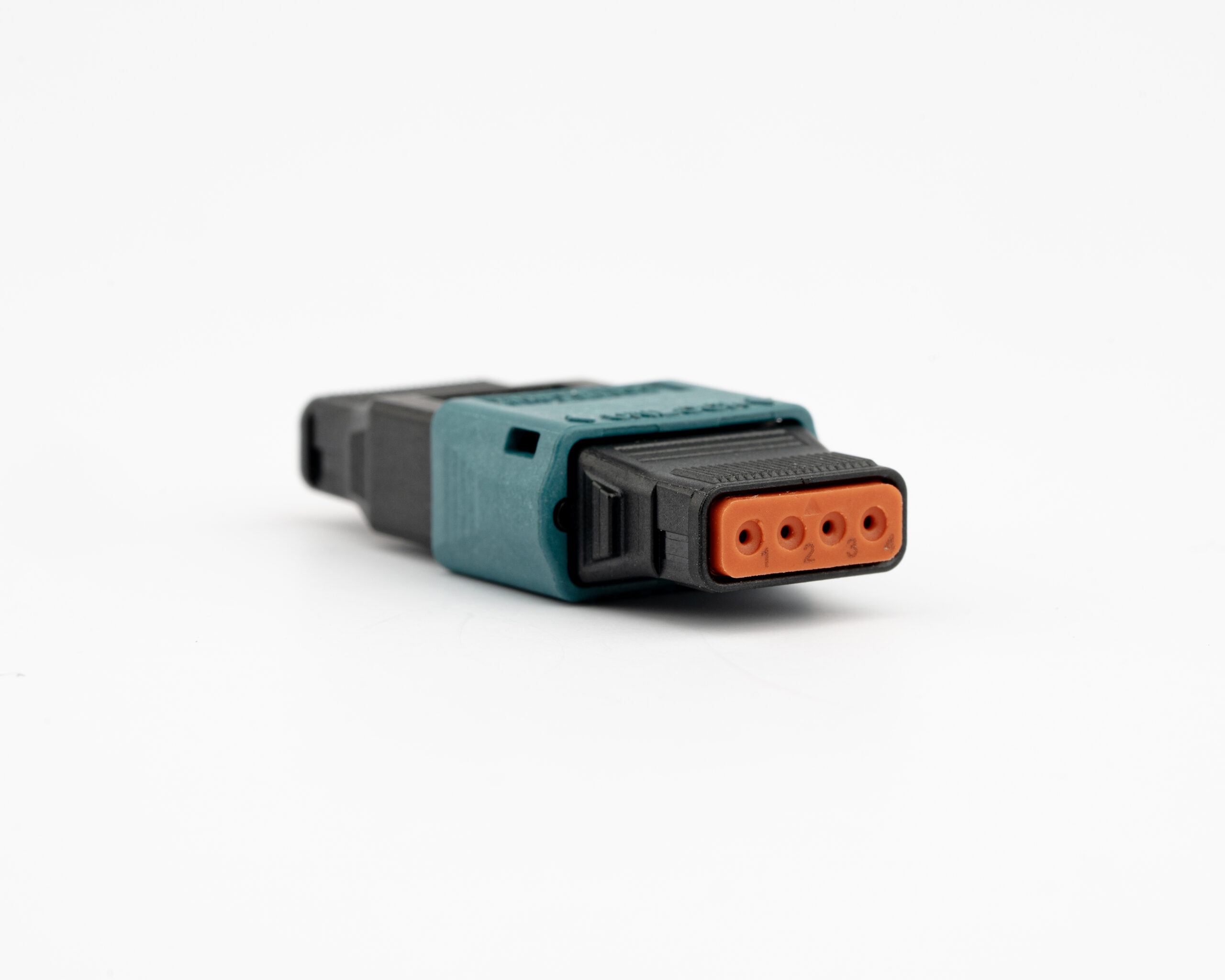

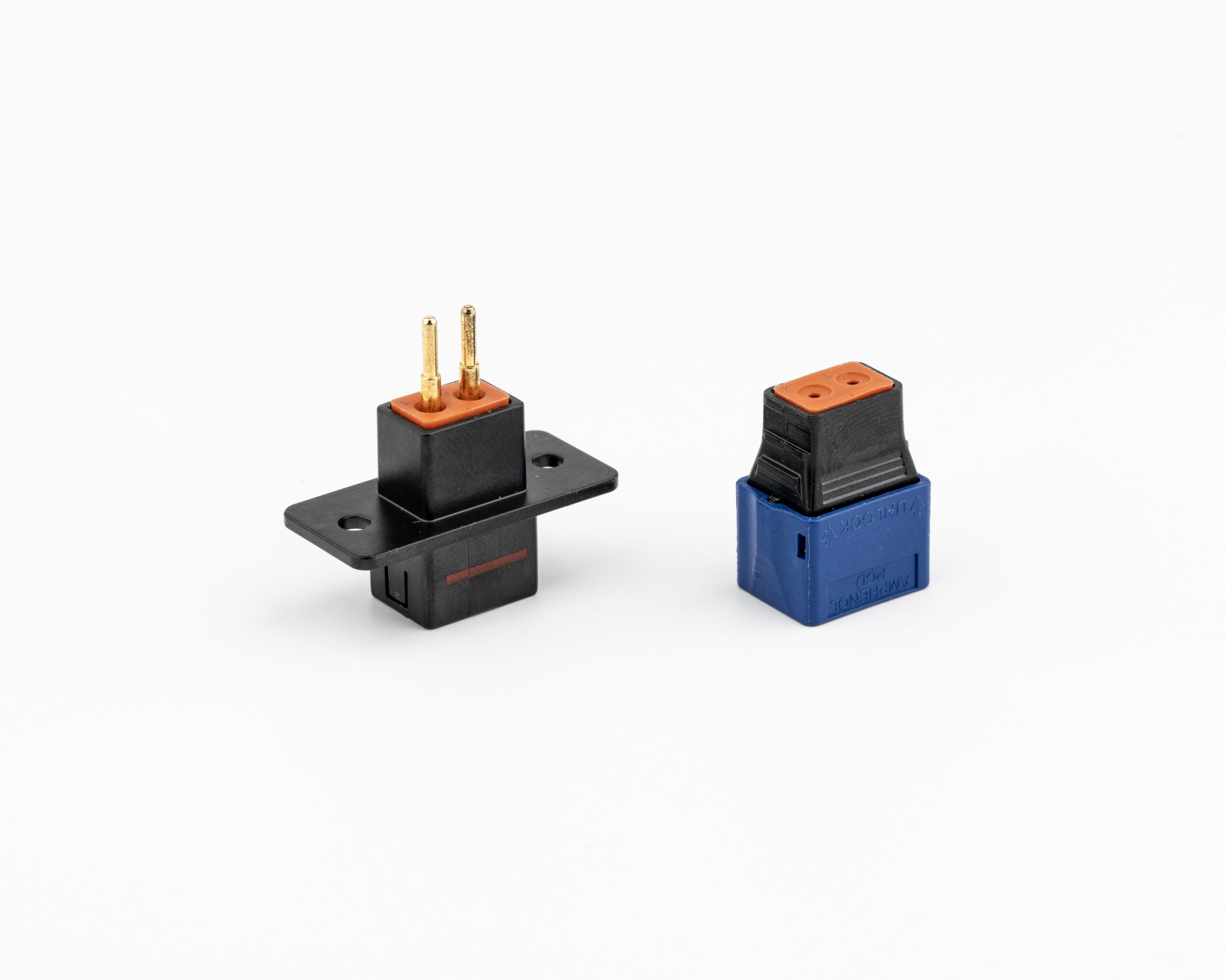

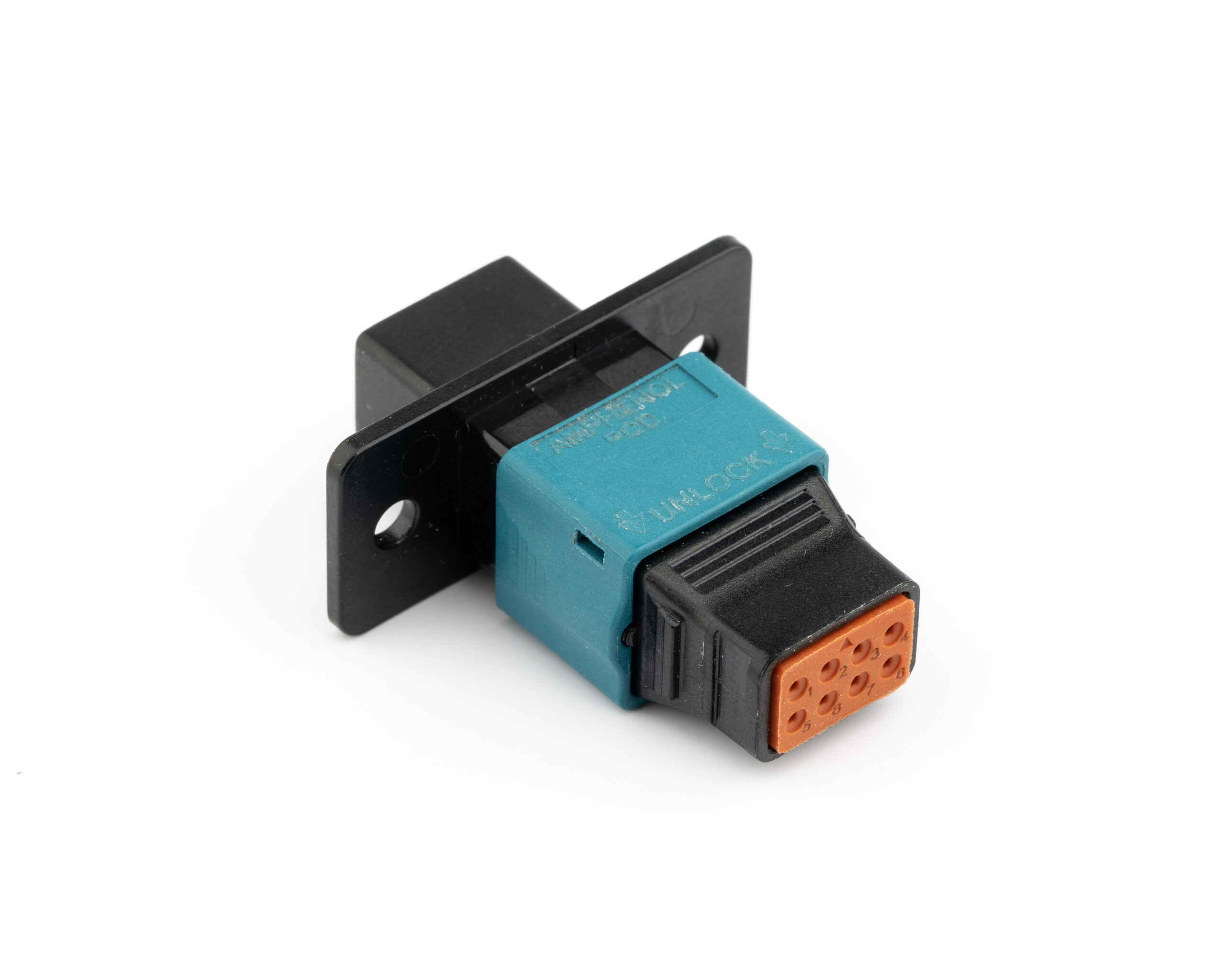

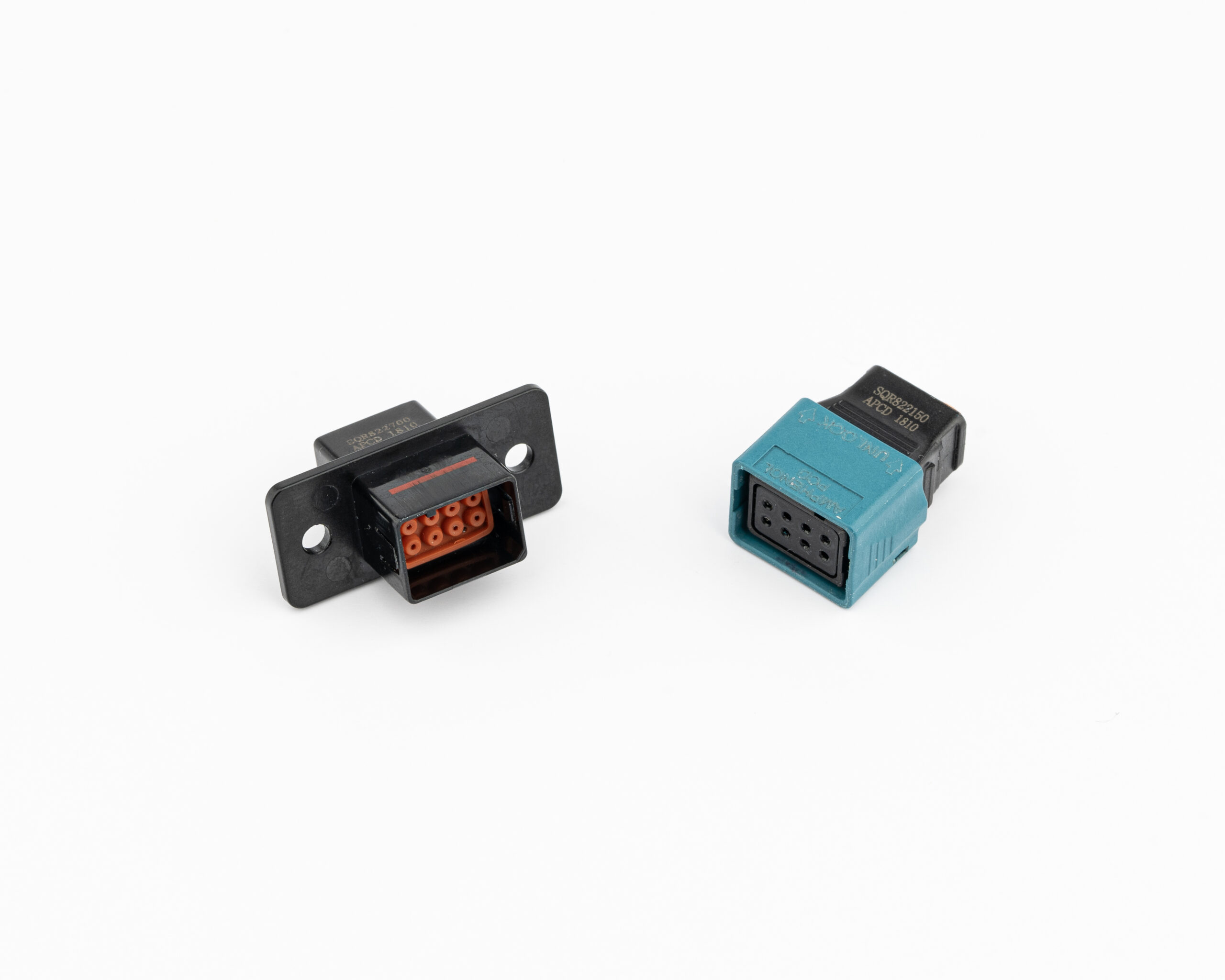

SOLARIS is a small, plastic, easy-to-use rectangular connector designed specifically for low and medium power applications.

Solaris’ spring-loaded slide lock mechanism is a snap to use - simply push to lock, and slide to unlock. The slide lock provides convenient single handed & tool-less mating, eliminating the Foreign Object Debris (FOD), found in typical screw mount D-Subs.  Each housing has raised finger ridges for a sure grip, and built-in cable tie access hole provides a “zero footprint” method to secure the connector to a bulkhead or cable bundle.

High grade polyethermide plastic makes SOLARIS suitable for man/machine interfaces with high mating cycles, and provides a wide operating temperature range.  Ultrasonically welded components means void free joints, sealing out humidity for long lasting, crack free operation over the life of the installation.   Interfacial seal and wire seal grommets provide IP67 sealing, meaning your application is free from dust, moisture and corrosion when exposed to the real world.

So when you need a small, rugged, lightweight, easy to use rectangular connector - think SOLARIS!

Features & Benefits
Low profile rectangular form factor
Less than 0.5” tall.  Fits into seat arms, backs, tray tables and compartments, as well as lower profile ceiling and side panels

Slide Latch
Easy to use, FOD free, tool-less mating

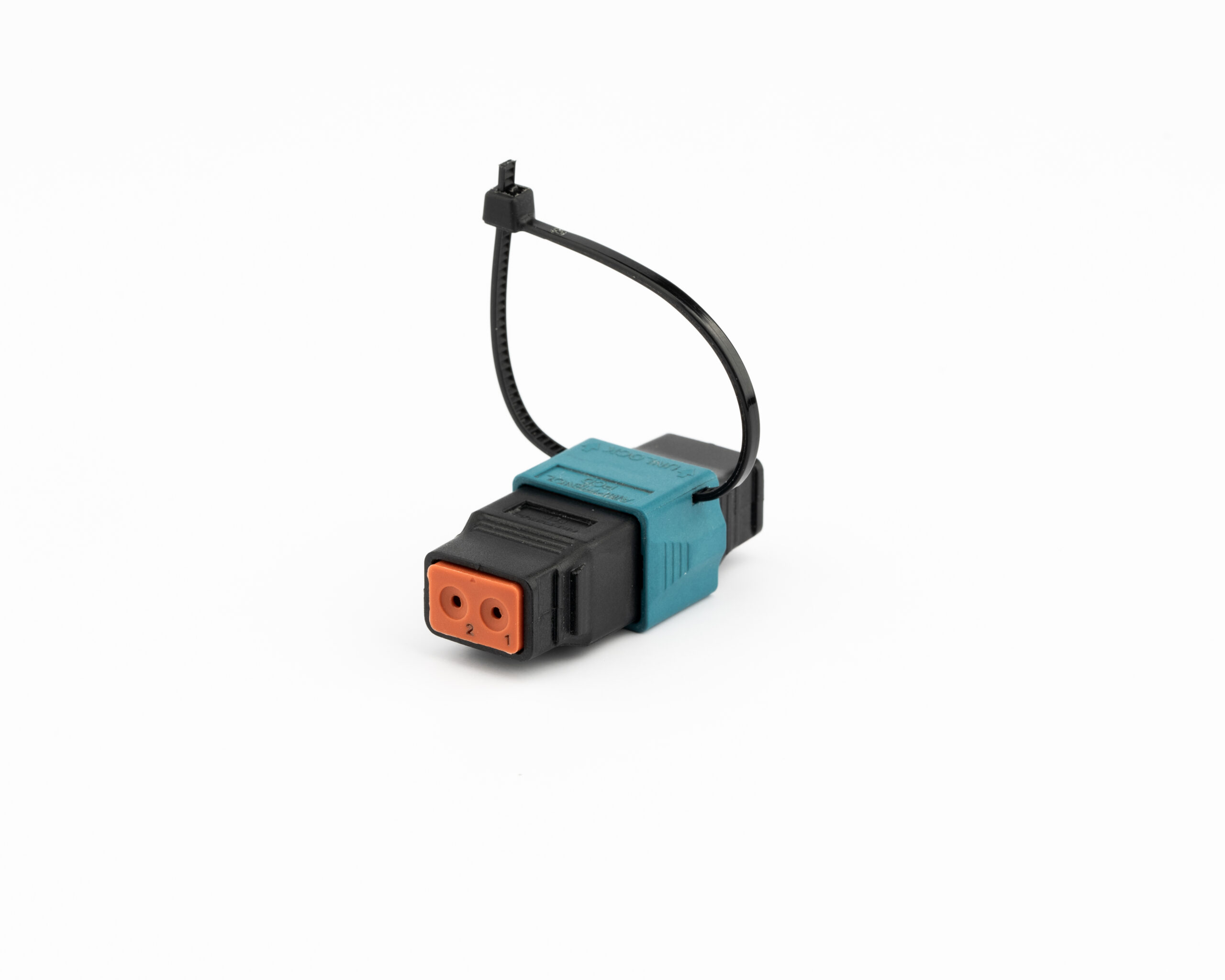

Integrated Tie Wrap hole
Zero footprint tie down to pipes, bundles and bulkheads

Interfacial & Wire sealing
IP67 performance for use in human interface, wet and damp applications

Polyethermide Housings
High temperature resistance, chemical resistance, long working life & high mating cycles

Integral boot ridge
Integrated feature for tying off protective sheathing and braids w/o adding backshells or saddle clamps

Snap-on strain relief
Tool-less, FOD free accessory that helps prevent wear and tear at cable / connector ingress

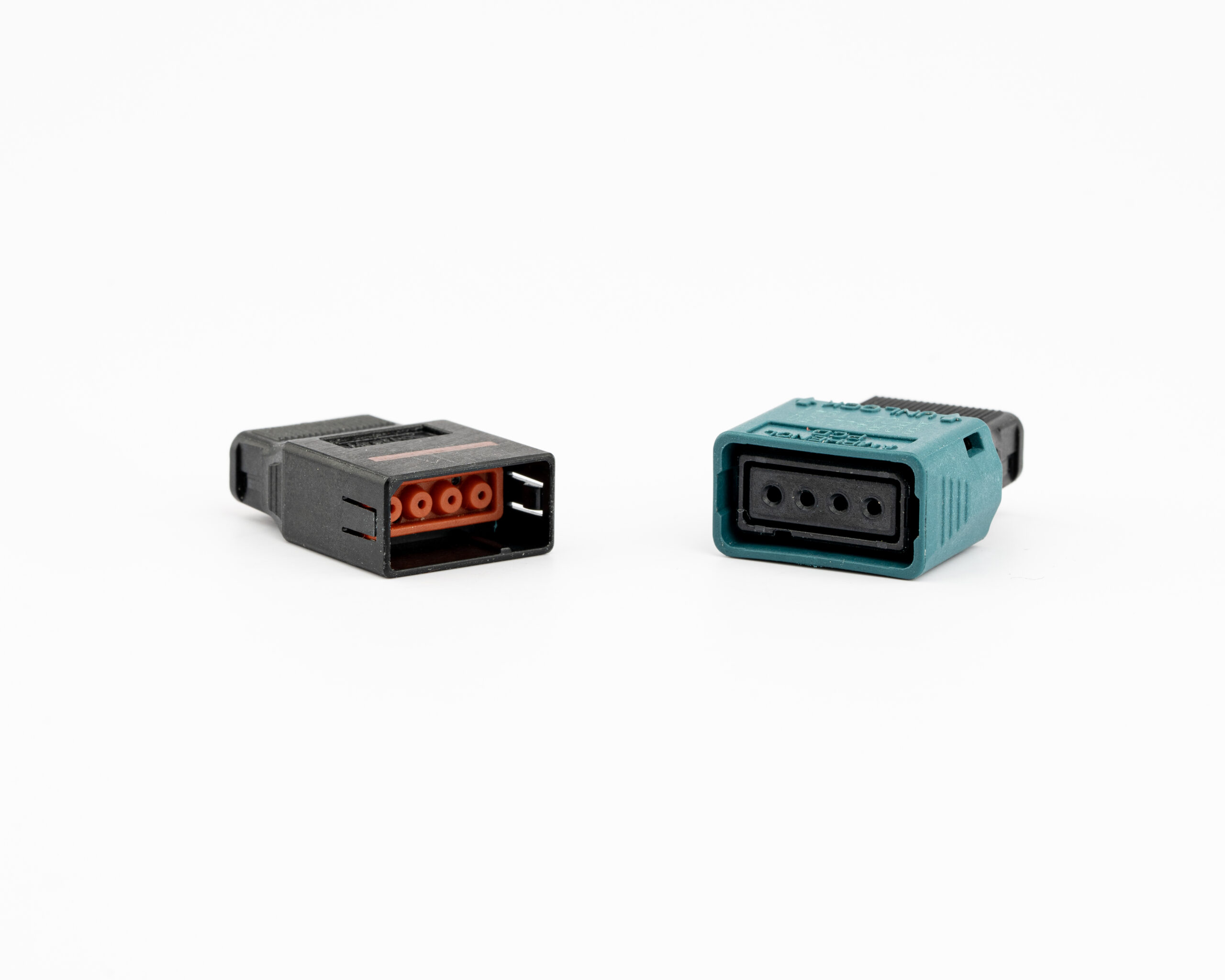

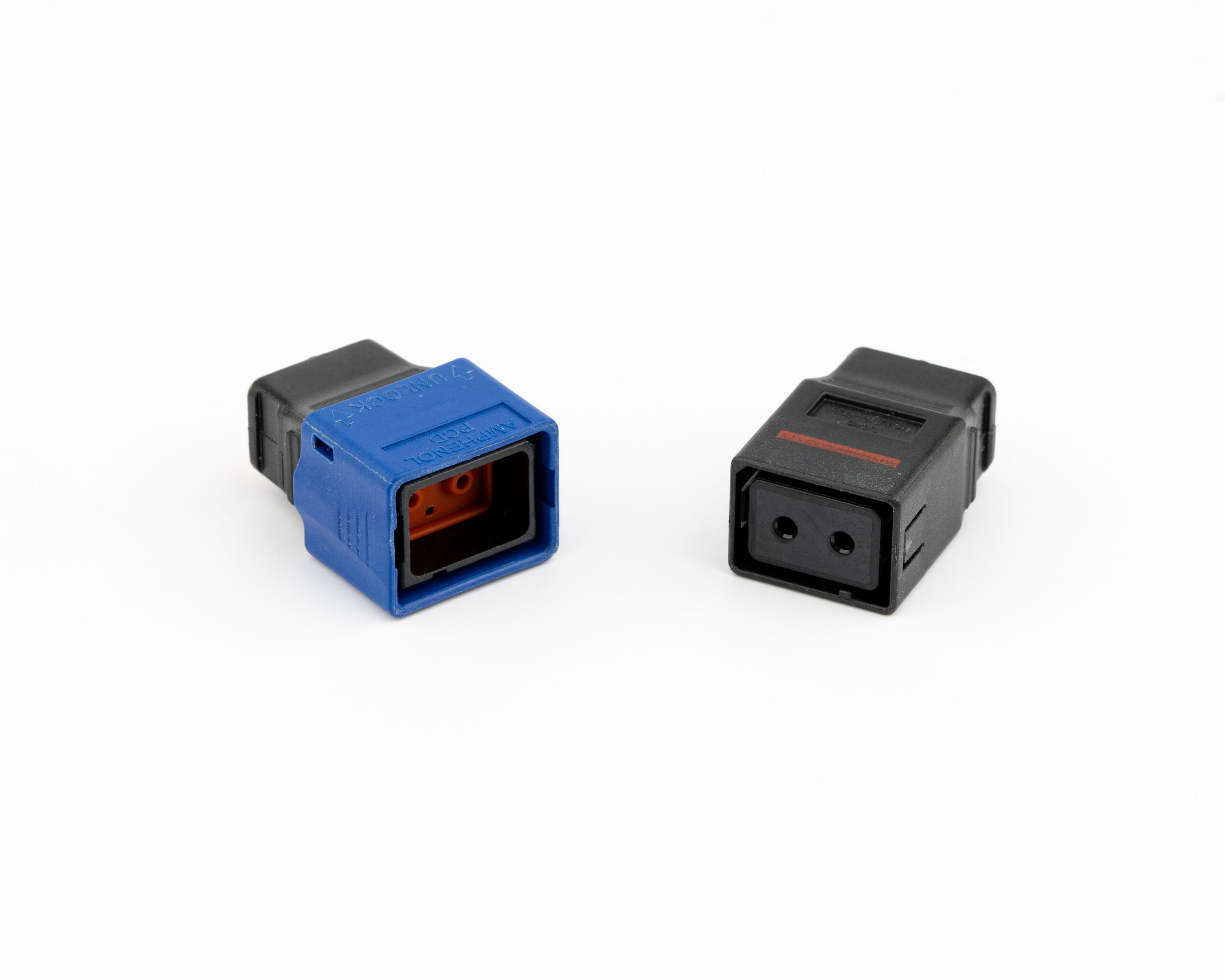

Reverse gender capability
Plugs & Receptacles may be configured with pins or sockets, allowing live power connector to be either plug or receptacle, depending on application requirements
